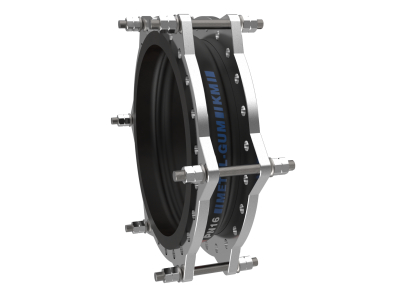

Rotary expansion joints
Product description

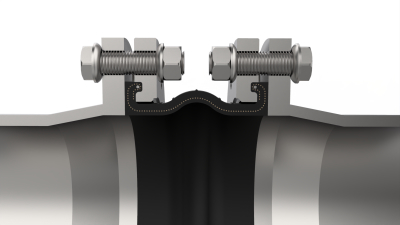

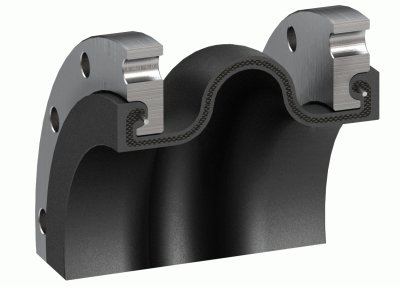

The compensator is equipped with a bellows with low protrusion, characterized by good sound and vibration damping. It has the ability to very large compensation, especially in angular directions. In addition, the bellows has a textile reinforcement consisting of several layers, which ensures durability even in difficult working conditions. Outer shell: black EPDM rubber resistant to abrasion, ozone and weather conditions.
More information in the catalog sheets at the bottom of the page.
Characteristic
| Pressure | up to 1.6 MPa |
| Flanges drilling | PN6 /10/16/ |
| Execution | BELLOW - NBR (max. 85 ° C) - EPDM (max. 100 ° C) - NR (max. 65 ° C) - CR (max. 70 ° C) - SBR (max. 75 ° C) - Hypalon (max. 140 ° C) FLANGES - steel-galvanized S235JR (St3S) - stainless steel 1.4301 (DH18N9) - stainless steel 1.4401 (DH17N12M2T), 1.4404 (OOH17N14M2) - other on request |
Rotary expansion joints – use purpose
In steel, resin or plastic installations. Easy to assemble and use in the whole range of available materials applied in various media such as : water, production wastes, sewage, lime slurry and others. Basic diameter range: DN50-DN1600.
